High performance
reversed-phase columns
|
 |
Sumipax ODS A is the first choice of
many chromatographic analyses for
high performance reversed phase
separation.
It has selectivity for a wide range of
organic compounds such as
pharmaceuticals, organic chemicals,
biologicals and natural products.
ODS A is noted for its high efficiency,
selectivity and long lifetimes. |
|
| Sumipax ODS A series |
- High theoritical plate number
- Fully endcapped
- Excellent peak symmetry
- Ultrapure silica support and high carbon loading
|
|
| ODS A series |
| Name |
Column size
i.d. X length |
Particle
size |
Pore
size
|
Surface area |
%
Carbon |
PH
range |
| SUMIPAX ODS A-211 |
4.6 X 250 mm |
5µm |
120Å |
300m2/g |
17% |
2.5 〜 7.5 |
| SUMIPAX ODS A-212 |
6 X 150 mm |
| SUMIPAX ODS A-213 |
10 X 250 mm |
| SUMIPAX ODS A-214 |
6 X 300 mm |
| SUMIPAX ODS A-215 |
6 X 100 mm |
| SUMIPAX ODS A-216 |
4 X 150 mm |
| SUMIPAX ODS A-217 |
4.6 X 150 mm |
|
| Sumipax ODS C series |
- High theoritical plate number
- Fully endcapped
- Excellent peak symmetry
- Ultrapure silica support and high carbon loading
|
|

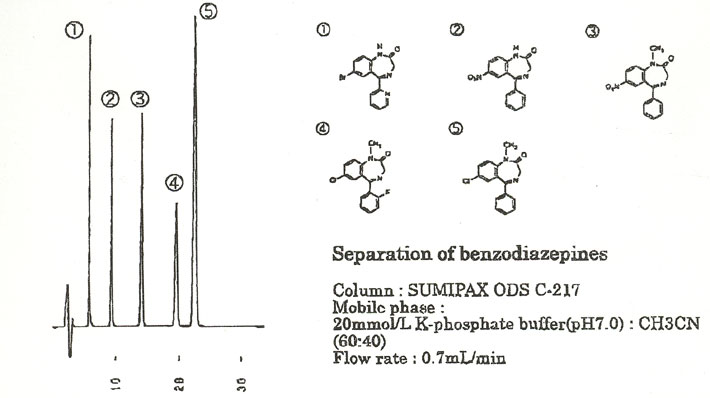

| Sumipax ODS C provides excellent peak symmetry, even chelating compounds
or basic samples, because ODS C use the ultrapure silica support with a
very low metal content. Sumipax ODS C is a high carbon coverage which exhibits
long retention and high resolution. |
|
|
|
| ODS C series |
| Name |
Column size
i.d. X length |
Particle
size |
Pore
size
|
Surface area |
%
Carbon |
PH
range |
| SUMIPAX ODS C-211 |
4.6 X 250 mm |
5µm |
110Å |
400m2/g |
22% |
2.0 〜 9.0 |
| SUMIPAX ODS C-212 |
6 X 150 mm |
| SUMIPAX ODS C-213 |
10 X 250 mm |
| SUMIPAX ODS C-214 |
6 X 300 mm |
| SUMIPAX ODS C-215 |
6 X 100 mm |
| SUMIPAX ODS C-216 |
4 X 150 mm |
| SUMIPAX ODS C-217 |
4.6 X 150 mm |
|
| Sumipax ODS D series |
- High theoritical plate number
- Fully endcapped
- Excellent peak symmetry
- Recommended for analyses of highly polar compounds
- Strong retention in aqueous eluents
|
|
Sumipax ODS D is a unique ODS column with a hydrophobic high carbon loading
and a relatively hydrophilic surface, which is recommended for analyses
of highly polar compounds.
It provides relatively strong retention in highly aqueous eluents even
in more than 95% water. Sumipax ODS D shows different selectivity with
conventional ODS columns. |
|

|
| ODS D series |
| Name |
Column size
i.d. X length |
Particle
size |
Pore
size
|
Surface area |
%
Carbon |
PH
range |
| SUMIPAX ODS D-211 |
4.6 X 250 mm |
3 , 5µm |
130Å |
280m2/g |
15% |
2.5 〜 7.5 |
| SUMIPAX ODS D-212 |
6 X 150 mm |
| SUMIPAX ODS D-215 |
6 X 100 mm |
| SUMIPAX ODS D-216 |
4 X 150 mm |
| SUMIPAX ODS D-217 |
4.6 X 150 mm |
| SUMIPAX ODS D-210EC |
3 X 150 mm |
| SUMIPAX ODS D-210MS |
2 X 150 mm |
|
| Sumipax ODS D-210SLP series |
The highest level Low Pressure Column in this Field :
Cut the too minute packing material and improvement the method to pack columns
provide the highest level Low Pressure Column. Possible to change 5um column to 3um
column D-210SLP in same conditions even if the Mobile Phase contains Methanol.
Correspondence to High-Through-Put Sumipax ODS-D-210SLP can maintain
the large number of theoretical plates of the Columns whether the Flow-Rate
increases. |
|

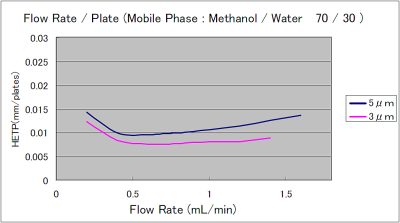

Correspondence to High-Through-Put :
Sumipax ODS-D-210SLP can maintain the large number of theoretical
plates of the Columns whether the Flow-Rate increases. |
 |
Conditions ：
Sumipax ODS D-210SLP
( 3μm, 4.6mmφx 150mm )
Sumipax ODS D-217
( 5μm, 4.6mmφx 150mm )
Mobile Phase：
Methanol / Water 70/30
Column Temperature ： 25℃
Test Piece ： Naphthalene
Injection : 1μL |
|

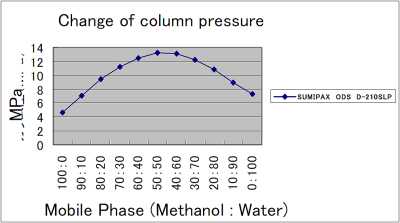

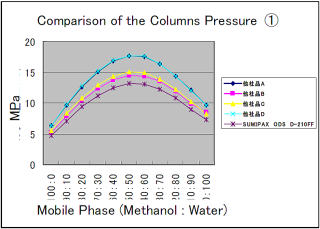

Good durability :
In such severe and uneven pressure conditions of gradient Methanol and water,
Sumipax ODS-D-210SLP tested 400 times injection but the theoretical plates
of the columns are almost same as first injection. |
Conditions ：
Sumipax ODS D-210SLP
( 3μm, 4.6mmφx 150mm )
Mobile Phase ：
A ： Methanol
B ： Water
B 0 → 100％ ( 0 → 20min )
Flow Rate ： 0.7 mL / min
Detection ： UV 254 nm
Column Temperature ： 25℃ |
 |
|
Conditions of durability test :
Sumipax ODS D-210SLP
( 3μm, 4.6mmφx 150mm )
Mobile Phase ： Methanol / Water 70 / 30
Flow Rate ： 0.7 mL / min
Test Piece ： Uracil , Benzoic acid Methyl
Toluene, Naphthalene
Injection ： 1μL |
 |

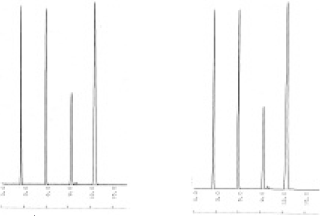

| 1st Injection |
|
After 400 times |
|
|
|
|
| ODS D-210SLP series |
| Name |
Column size
i.d. X length |
Particle
size |
| SUMIPAX ODS D-210SLP |
2.0 X 50 mm |
3µm |
| 2.0 X 150 mm |
| 4.6 X 50 mm |
| 4.6 X 100 mm |
| 4.6 X 150 mm |
| 4.6 X 250 mm |
|
| Sumipax ODS Z-CLUE series |
1. High number of theoretical plates but low pressure
( Methanol can be used with 3um particles in 4.6 x 250mm column because
of low pressure. )
2. Extreme inactivation of silanol , Good for basic compound and acidic compound
3. Available pH range : 1 - 10
4. Excellent durability
5. Excellent repeatability |
|
| ODS Z-CLUE series |
| Name |
Column size
i.d. X length |
Particle
size |
Pore
size
|
Surface area |
%
Carbon |
PH
range |
| SUMIPAX ODS Z-CLUE |
2.0 X 30 mm |
2µm |
120Å |
350m2/g |
16% |
1 〜 10 |
| 2.0 X 50 mm |
| 2.0 X 100 mm |
| 3.0 X 30 mm |
| 3.0 X 50 mm |
| 3.0 X 100 mm |
| 2.0 X 50 mm |
3µm |
| 2.0 X 100 mm |
| 2.0 X 150 mm |
| 3.0 X 50 mm |
| 3.0 X 100 mm |
| 3.0 X 150 mm |
| 4.6 X 50 mm |
| 4.6 X 100 mm |
| 4.6 X 150 mm |
| 4.6 X 250 mm |
| 2.0 X 50 mm |
5µm |
| 2.0 X 150 mm |
| 3 X 150 mm |
| 4.6 X 150 mm |
| 4.6 X 250 mm |
|
|
